1. Fetch-Decode-Execute Cycle

The Fetch-Decode-Execute cycle is the basic method used by the CPU to carry out a single instruction contained in a computer program.

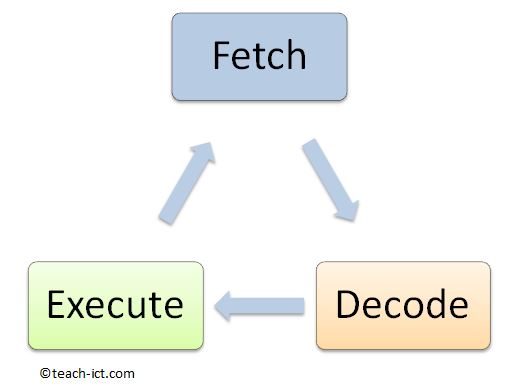

The diagram below shows how each step relate to one another. First there is a fetch operation followed by a decode operation and then an execute operation. Then another fetch begins and the cycle starts all over again.

fetch decode process cycle

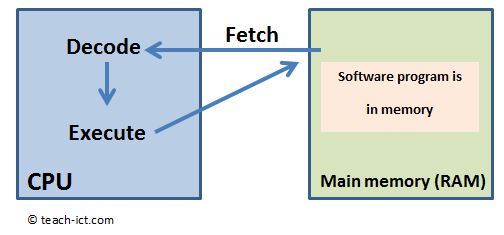

The diagram below shows the software to be run is located in main memory (RAM). Usually the operating system loads it, ready for the CPU to use. The very first instruction in the program needs to be loaded into the CPU (fetch)

fetch cpu and memory

The fetch action loads an instruction into the CPU then the decode and execute stage take place inside the CPU. Once the first cycle is complete, the CPU fetches the next instruction.

Challenge see if you can find out one extra fact on this topic that we haven't already told you Click on this link: Fetch Decode Cycle
